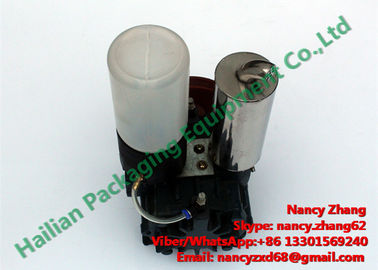

250 Liter Rotary Vane Vacuum Pump for Vacuum Pump Mobile Milking Machine
Quick Details:
- 250liter/min capacity rotary vacuum pump
- rotary vane vacuum pump with stainless steel silencer
- small rotary vane vacuum pump for portable milking machine
- cast iron material cow vacuum pump with stainless steel muffler
Description:
The rotary vane vacuum pump is the heart of the milking machine. Regular servicing helps preserve the vacuum reserve. Various capacity vacuum pump with different motor power be supplied for choosing. The heavy duty body of the rotary vane vacuum pump is constructed from chemical resistant cast iron, making it durable to any environmental working conditions.
The function of rotary vane vacuum pump is to extract air from the milking machine system through the belt driven. This milking machine vacuum pump gives flexibility with speeds ranging from about 800–1500 r/min and a corresponding angel of pump capacities to suit different sizes of milking machines.
One whole set rotary vane vacuum pump consists of vacuum pump, silencer (stainless steel muffer), oil can (oil pot), belt (pulley) and some rubber parts. And the pump vane of vacuum pump kits is made of fiber material.
Specification:
|
Capacity (L/min) |
250 |
300 |
550 |
850 |
1500 |
2100 |
|
Pump Speed (r/min) |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
|
Vacuum Degree(Kpa) |
50 |
50 |
50 |
50 |
50 |
50 |
|
Noise (Db(A)) |
≤50 |
≤50 |
≤60 |
≤70 |
≤70 |
≤70 |
|
Ultimate Vacuum(Mp) |
≤90 |
≤90 |
≤90 |
≤90 |
≤90 |
≤90 |
|
Motor Power(kw) |
1.1 |
1.1 |
2.2 |
3 |
4 |
5.5 |
|
Weight(kg) |
13.5 |
14 |
31 |
36 |
57.5 |
69.5 |
|
Size(L×W×H) (mm) |
230*220*220 |
230*220*220 |
280*270*220 |
300*220*220 |
430*230*230 |
390*290*290 |
Note: The above parameters for reference only!
Features:
- Suitable for milking parlor, automatic milking system and milking machine;
- Comfortable and reasonable appearance design;
- Reasonable silencer to reduce the noise;
- Vacuum air circle fast and rapid;
- Perfect oil pot, save oil.
Application:
The rotary vane vacuum pump is the heart of the milking machine system, through extracting air, the vacuum pump help the milking machine system finish the sucking fresh milk from animals and collect milk through piping into milk tanker, milk bucket, milk receiver. This milking machine vacuum pump gives flexibility with speeds ranging from about 800–1500 r/min and a corresponding angel of pump capacities to suit different sizes of milking machines and milking system.
|
|
